Description
Technical Parameters

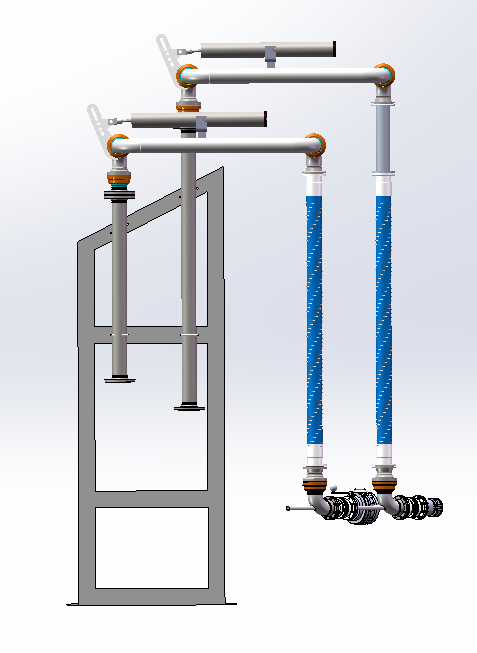

Bottom loading arm AL2404
Technical Parameters
|
Item |
Specification / Description |
|
Model |
AL2404 |
|
Size |
DN100 |
|
Applicable Media |
Suitable for bottom loading and unloading of gasoline and diesel tank trucks, equipped with an API dry disconnect valve. |
|
Design Temperature |
-40°C to +190°C |
|
Design Pressure |
0.6–2.5 MPa |
|
Material |
20# |
Selection Parameter Table
|
Technical Item |
Data |
|
Nominal Bore |
|
|
Product Handled |
|
|
Construction Material |
|
|
Swivel Direction |
Left ( ) / Right ( ) |
|
Connection Flange Standard |
|
|
Medium Temperature |
|
|
Medium Pressure |
|
|
Column Configuration |
With / Without |
|
Platform Height |
mm |
|
Offset from Platform Edge to Coupling Center |
mm |
|
Offset from Coupling Center to Truck Center |
mm |
|
Height from Platform to Coupling Flange |
mm |
|
Lowest Manhole Level |
mm |
|
Highest Manhole Level |
mm |
|
Guardrail Level |
mm |
|
Overhead Cover Height |
mm |
