In the petroleum, chemical, fuel oil, liquefied natural gas (LNG), liquid food, and hazardous chemical industries, the safety and efficiency of loading and unloading operations directly affect operating costs, environmental compliance, and personnel safety. As safety regulations and environmental requirements become increasingly stringent, loading arms are increasingly used as an alternative to traditional flexible hoses, becoming essential equipment at tank farms, oil depots, terminals, and tank truck loading and unloading stations.
When planning a project or purchasing equipment, procurement professionals, engineers, and end users often face an important question: Should you choose top loading arms or bottom loading arms?
Both solutions are designed to transfer liquid products, but they differ significantly in terms of operational safety, environmental performance, loading efficiency, initial investment, and application scenarios. Understanding these differences can help companies make informed equipment selection decisions and avoid costly mistakes during project planning and procurement.

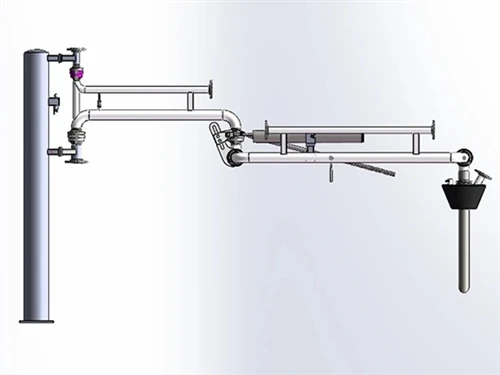

What Are Top Loading Arms?
Top loading arms are devices installed above a loading platform that extend into the top manhole or loading opening of a tank truck or rail tank car to facilitate liquid loading and unloading. This method has been used for decades in petroleum, chemical, and other liquid handling industries.
During operation, personnel typically access an elevated loading platform and position the loading arm at the tank's top opening before product transfer begins.
Main Components of Top Loading Arms
A typical top loading arm consists of:
- Support column
- Inner and outer arm assemblies
- Counterbalance mechanism
- Swivel joints
- Drop pipe
- Vapor recovery system (optional)
- Access ladders and operating platforms
Depending on the product characteristics and operating requirements, the system can also be equipped with:
- Overfill prevention systems
- Emergency release systems
- Liquid level monitoring systems
- Nitrogen blanketing systems
Top loading arms can be designed for different products, flow rates, operating temperatures, and installation conditions. The appropriate configuration depends on the tank vehicle design, product properties, and applicable safety requirements.
What Are Bottom Loading Arms?
Bottom loading arms are devices designed to load or unload liquid products through the bottom valves or bottom loading connections of tank trucks and rail tank cars. In conventional bottom loading systems, the loading arm connects to a compatible bottom connection, such as an API coupler where applicable.
Unlike top loading systems, bottom loading arms generally allow operators to connect and disconnect the equipment at ground level without climbing onto the vehicle. This arrangement can reduce personnel exposure to operational hazards and improve loading convenience.
As environmental regulations and industrial safety standards continue to evolve, bottom loading has become a widely adopted solution for refined petroleum product loading facilities in many countries and regions.
A typical bottom loading arm consists of:
- Support column or mounting structure
- Loading arm assembly
- Swivel joints
- API coupler or compatible bottom connection
- Counterbalance mechanism, where required
- Product transfer piping
- Vapor recovery connection, where required
- Emergency release or safety devices, where specified
Depending on the application, additional equipment may include:
- Overfill prevention systems
- Static grounding and monitoring systems
- Automated loading control systems
- Vapor recovery equipment
- Emergency shutdown systems
- Pressure and temperature monitoring instruments
Bottom loading arms are widely used in refined petroleum product terminals, chemical storage facilities, and other installations requiring efficient and controlled liquid transfer.
Their suitability depends on the tank vehicle's connection configuration, the properties of the product, the required operating conditions, and the applicable safety and environmental requirements.
Key Differences Between Top Loading and Bottom Loading Arms
3.1 Loading and Unloading Positions
The most obvious difference between the two systems is the location of the connection point.
Top Loading Arms
The connection point is located at the top of the tank truck or rail tank car. Operators must access the top loading opening or manhole, and the liquid generally enters the tank from above.
Bottom Loading Arms
The connection point is located at the bottom of the tank. The loading arm connects to the bottom valve or compatible API connection, allowing liquid to enter or leave the tank through the bottom connection.
Bottom loading can reduce liquid splashing when the system is properly designed and operated. However, the actual flow pattern and transfer performance depend on the tank configuration and loading conditions.
3.2 Safety Performance
For most end users, operational safety is one of the most important factors when selecting a loading system.
Potential Risks of Top Loading Arms
Top loading operations may require personnel to work at elevated positions, exposing them to risks such as:
- Falls from height
- Slips and trips
- Adverse weather conditions
- Liquid splashes
- Exposure to toxic or hazardous vapors
These risks can increase during nighttime operations, rainy or snowy weather, and winter conditions in colder regions.
Appropriate access platforms, guardrails, fall protection systems, and operating procedures are therefore important considerations in top loading system design.
Safety Advantages of Bottom Loading Arms
Because connections can generally be made at ground level, bottom loading systems can reduce the need for personnel to climb onto tank vehicles.
Their potential advantages include:
- Reduced working-at-height risks
- Reduced personnel exposure to hazardous products
- Improved operating convenience
- Reduced potential exposure to product vapors when closed connections are used
- Easier integration with automated safety interlocks and emergency shutdown systems
Bottom loading can therefore offer significant safety benefits, particularly at facilities handling large numbers of tank trucks.
However, bottom loading systems still require appropriate procedures for connection and disconnection, pressure control, spill prevention, grounding, and emergency response.
3.3 Environmental Performance
Environmental compliance has become an increasingly important consideration in liquid loading operations. Controlling emissions of volatile organic compounds (VOCs) is particularly important when handling gasoline, solvents, and other volatile products.
Top Loading Arms
When liquid enters a tank from above, splashing and turbulence may increase vapor generation and release, particularly during open or splash loading.
Potential considerations include:
- Greater liquid surface disturbance
- Potentially increased vapor release
- Greater dependence on the loading arrangement and vapor recovery system
Top loading arms can also be equipped with vapor recovery systems. Their environmental performance depends on the loading configuration, sealing arrangements, operating procedures, and the effectiveness of the vapor recovery equipment.
Bottom Loading Arms
Bottom loading systems are well suited to closed-loading arrangements and integration with vapor recovery systems.
Potential advantages include:
- Reduced splashing during liquid transfer
- Reduced direct release of product vapors when closed connections are used
- Improved integration with vapor recovery equipment
- Better control of emissions in appropriately designed systems
These advantages are particularly relevant when handling highly volatile products such as gasoline, solvents, and benzene-containing products.
Actual VOC emissions depend on the product, tank conditions, connection integrity, vapor recovery capacity, and operating procedures. Bottom loading alone does not guarantee compliance with emission limits.
3.4 Loading Efficiency
Loading efficiency depends on several factors, including the required flow rate, pump capacity, piping diameter, product viscosity, tank vehicle design, and operating procedures.
Top Loading Arms
Top loading systems can achieve high transfer rates when properly designed. However, certain applications require controlled filling rates to minimize splashing, electrostatic hazards, and vapor generation, particularly during the initial stage of loading.
Additional time may also be required for operators to access the loading platform, position the arm, and connect it to the tank opening.
Bottom Loading Arms
Bottom loading systems are well suited to high-throughput operations, particularly at facilities handling large numbers of tank trucks.
Their advantages may include:
- Convenient ground-level connection and disconnection
- Potentially shorter vehicle turnaround times
- Compatibility with automated loading control systems
- Easier integration into multi-bay loading facilities
Actual loading efficiency depends on the complete system design. Bottom loading does not automatically guarantee a higher flow rate; the pump, piping, valves, couplings, and tank vehicle must all be suitable for the required operating conditions.
3.5 Electrostatic Control
Electrostatic charge is an important safety consideration when transferring flammable liquids, particularly gasoline, solvents, and other low-conductivity products.
Top Loading Arms
When liquid enters a tank from above, splashing and turbulence can increase electrostatic charge generation. Appropriate loading procedures, controlled initial flow rates, and sufficient relaxation time may therefore be necessary.
Bottom Loading Arms
Bottom loading can reduce splashing by introducing liquid through the bottom connection. However, electrostatic hazards can still occur during liquid transfer, especially when handling low-conductivity products.
For both loading methods, appropriate precautions may include:
- Electrical bonding and grounding
- Static grounding verification and interlocks, where required
- Controlled initial loading flow rates
- Properly designed piping and filling arrangements
- Compliance with applicable electrostatic safety standards
The effectiveness of electrostatic control depends on product properties, equipment design, operating procedures, and the overall grounding and bonding system.
3.6 Initial Investment Cost
Initial investment is influenced by equipment specifications, the number of loading bays, required flow rates, automation level, safety accessories, and existing site infrastructure.
Top Loading Arms
Top loading systems may offer a lower initial investment when a facility already has suitable loading platforms and tank vehicles with compatible top openings.
However, overall project costs may increase if new platforms, access ladders, fall protection systems, or vapor recovery equipment are required.
Bottom Loading Arms
Bottom loading systems may require a higher initial investment when the project involves new loading bays, compatible bottom connections, dedicated piping, API couplers, grounding systems, or automated loading controls.
Nevertheless, bottom loading may provide long-term operational benefits through reduced vehicle turnaround times, improved personnel safety, and easier integration with automated processes.
A proper cost comparison should consider the total cost of ownership, including installation, operation, maintenance, safety provisions, and environmental compliance, rather than equipment purchase price alone.
3.7 Compatibility with Different Tank Vehicles
Tank vehicle compatibility is one of the most important factors when selecting a loading system.
Top Loading Arms
Top loading arms are suitable for tank vehicles equipped with compatible top manholes or loading connections. They may be particularly practical for existing fleets designed primarily for top loading.
The arm's reach, vertical travel, drop pipe length, and connection arrangement must match the dimensions and configuration of the vehicle.
Bottom Loading Arms
Bottom loading arms require compatible bottom valves or standardized bottom loading connections, such as API couplings where applicable.
Before selecting a bottom loading system, the project team should verify:
- Bottom connection type and dimensions
- Connection height and orientation
- Vehicle clearance and loading bay layout
- Product compatibility and required sealing materials
- Vapor recovery connection requirements
For facilities serving mixed fleets, vehicle compatibility should be assessed before making a final equipment selection.
Which Industries Are Better Suited to Top Loading Arms?
Top loading arms are commonly used when the product, tank vehicle design, existing infrastructure, or site conditions make top loading a practical solution.
Typical applications include:
1. Crude Oil Storage and Transportation
Top loading may be suitable for certain crude oil handling applications, depending on product properties, tank vehicle design, and facility configuration. The selection should also consider vapor emissions, fire protection, and applicable safety requirements.
2. Asphalt Industry
High-temperature asphalt is commonly handled using loading arrangements specifically designed for elevated operating temperatures and the material's viscosity. Top loading may be suitable where the tank vehicle and loading facility are designed for this method.
3. Rail Tank Car Transportation
Some rail tank cars are designed primarily for top loading, making compatible top loading equipment necessary. The final configuration depends on the tank car's connection arrangement and the relevant railway and industrial standards.
4. Liquid Food Industry
Top loading arms can be used to transfer liquid products such as syrups, vegetable oils, food-grade alcohol, and other liquid food ingredients, provided the equipment materials, surface finishes, cleaning arrangements, and hygienic design meet the required food-grade standards.
5. Specialized Tank Systems
Top loading may be preferred when existing tank designs, site constraints, or infrastructure limitations make bottom connections impractical.
In retrofit projects, retaining a compatible top loading arrangement may also reduce the need for major modifications to existing vehicles and loading facilities.
Which Industries Are Better Suited to Bottom Loading Arms?
Bottom loading arms are particularly suitable for facilities that prioritize closed transfer, personnel safety, vapor emission control, and efficient handling of large vehicle volumes.
Typical applications include:
1. Refined Petroleum Product Depots
Bottom loading arms are widely used for loading and unloading gasoline, diesel, aviation fuel, and other refined petroleum products. They are particularly suitable for facilities requiring controlled loading operations and integration with vapor recovery systems.
2. Chemical Logistics Centers
Bottom loading systems can be used to handle methanol, ethanol, aromatic hydrocarbons, and organic solvents, provided the equipment materials, seals, and operating arrangements are compatible with the products.
3. Hazardous Chemical Storage and Transportation Facilities
Bottom loading arms can support controlled transfer operations in accordance with applicable safety, environmental, and hazardous area requirements. Additional measures may include emergency shutdown systems, grounding interlocks, vapor recovery, and leak prevention.
4. Large-Scale Storage and Transportation Terminals
Bottom loading systems are well suited to multi-bay loading facilities that require high throughput, standardized operating procedures, and integration with automated loading and monitoring systems.
For these applications, the overall system design should account for product characteristics, required flow rates, vehicle compatibility, vapor recovery, and emergency response requirements.
Comparison of Top Loading and Bottom Loading Arms
|
Comparison Item |
Top Loading Arms |
Bottom Loading Arms |
|
Connection Location |
Top loading opening or manhole |
Bottom valve or compatible API connection |
|
Operating Method |
Connection is generally made from an elevated platform |
Connection can generally be made at ground level |
|
Personnel Safety |
Requires appropriate controls for working at height |
Reduces the need for working at height |
|
Vapor Exposure Risk |
Potentially greater exposure during open loading |
Closed connections can reduce operator exposure |
|
Environmental Performance |
Performance depends on loading configuration and vapor recovery provisions |
Well suited to closed loading and vapor recovery |
|
Electrostatic Control |
Splashing may increase electrostatic hazards |
Bottom filling can reduce splashing, but grounding and flow control remain essential |
|
Loading Efficiency |
Can achieve high flow rates with suitable equipment |
Well suited to high-throughput loading operations |
|
Automation Level |
Can be integrated with automated loading controls |
Well suited to automated loading and monitoring |
|
Vapor Recovery Compatibility |
Can be equipped with suitable vapor recovery arrangements |
Generally well suited to closed vapor recovery systems |
|
Initial Equipment Investment |
May be lower when existing infrastructure can be reused |
May require additional investment in bottom connections and loading infrastructure |
|
Installation Complexity |
Depends on platform access, arm reach, and site layout |
Depends on bottom connection compatibility, piping, and loading bay design |
|
Maintenance Requirements |
Elevated access may be required for certain maintenance tasks |
Ground-level access can simplify some inspection and maintenance tasks |
|
Tank Vehicle Compatibility |
Requires compatible top loading openings |
Requires compatible bottom valves or couplings |
|
Suitability for Older Vehicles |
Suitable if existing vehicles have compatible top connections |
Depends on the availability of compatible bottom connections |
|
Suitability for Hazardous Chemicals |
Suitable when the equipment and operating arrangements meet product requirements |
Suitable when the equipment and operating arrangements meet product requirements |
How to Choose the Right Loading Arm for Your Project
There is no universally superior solution. The right choice depends on the specific requirements of each project.
When Should You Choose Top Loading Arms?
Top loading arms may be a more economical and practical option if your project has the following characteristics:
- A limited equipment budget
- An existing fleet of tank vehicles designed for top loading
- Existing top-loading infrastructure that can be reused
- Products and operating conditions compatible with top loading
- Site conditions that make bottom connections impractical
For retrofit projects, retaining an existing top loading system may reduce infrastructure modifications and simplify implementation.
Bottom loading arms may offer greater long-term value if your project prioritizes:
- Personnel safety
- Environmental compliance
- VOC emission control
- Automated loading operations
- High loading throughput
- Reduced vehicle turnaround time
- Integration with closed-transfer systems
For new oil depots, chemical industrial parks, and large-scale logistics terminals, bottom loading systems are often considered during the initial design stage, particularly for refined petroleum products and other applications requiring controlled, closed loading.
Key Factors to Consider Before Making a Decision
Before selecting a loading arm system, evaluate the following factors:
1. Product Characteristics
Consider the product's chemical properties, viscosity, volatility, corrosiveness, operating temperature, and compatibility with equipment materials and seals.
2. Required Flow Rate
Determine the required loading or unloading capacity and verify that the loading arms, pumps, piping, valves, and couplings can meet the specified operating conditions.
3. Tank Vehicle Specifications
Confirm the vehicle's connection type, connection dimensions, loading arrangement, and compatibility with the proposed equipment.
4. Safety and Environmental Requirements
Evaluate the need for vapor recovery, overfill prevention, electrostatic protection, emergency shutdown, hazardous area compliance, and spill prevention.
5. Site Layout and Existing Infrastructure
Consider available installation space, loading platform design, vehicle access, piping routes, drainage, and opportunities to reuse existing facilities.
6. Automation Requirements
Determine whether the project requires automatic loading control, grounding verification, preset loading quantities, data monitoring, or integration with a supervisory control system.
7. Total Cost of Ownership
Compare not only the initial equipment investment but also installation, maintenance, operating costs, personnel safety measures, and environmental compliance over the expected service life.
A comprehensive assessment of these factors will help ensure that the selected loading arm system meets current operational requirements and supports future expansion.
Conclusion
Top loading and bottom loading arms each offer distinct advantages, and the most appropriate solution depends on the product being handled, required transfer capacity, tank vehicle configuration, transportation method, and site conditions.
In addition to selecting between top loading and bottom loading, project planners should consider operating pressure and temperature, material selection, vapor recovery requirements, explosion protection, automation, and control system requirements.
For projects involving oil depots, chemical storage and transportation facilities, terminal loading areas, or tank truck loading systems, professional equipment selection at an early stage can help avoid unnecessary modifications and improve long-term operational performance.
The right loading arm configuration can improve loading efficiency, reduce operational risks, simplify maintenance, and help facilities meet increasingly stringent safety and environmental requirements.
Get a Professional Loading Arm Selection Solution
Hechang Machinery provides loading arm solutions tailored to your product characteristics, operating environment, tank vehicle specifications, and project requirements.
Our engineering team can assist with top loading and bottom loading arm selection, customized equipment design, installation guidance, and on-site commissioning to help ensure safe and efficient system operation.
Whether you are building a new loading facility or upgrading an existing installation, we can help you evaluate the available options and identify a suitable loading arm configuration for your application.
Contact Hechang Machinery today to request a professional loading arm selection assessment and make a well-informed equipment purchasing decision.
